Audio Amplifier

Smart Music Player

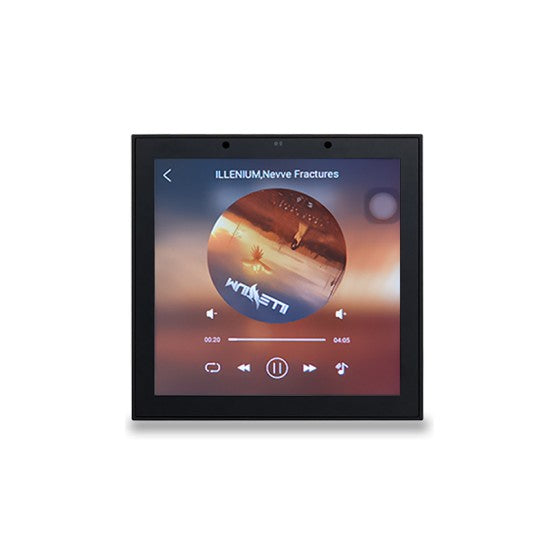

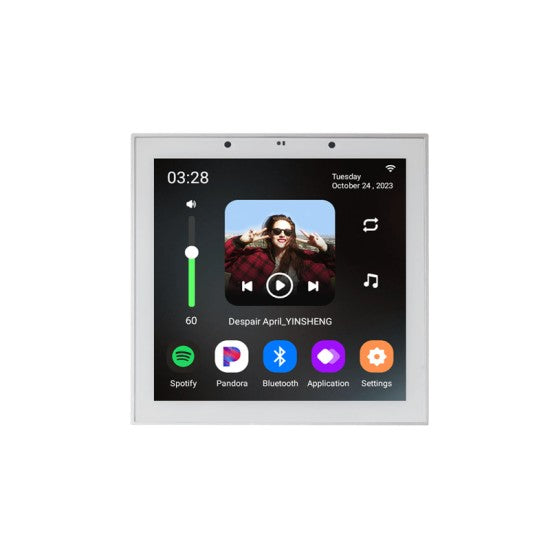

TUYA-I5 is a smart music player that supports both Wi-Fi and Bluetooth connection, it allows you to play music easily from different audio sources. The control panel can play audio files from internal storage, Bluetooth, microSD card. It has AUX in and out, can connect to your existing conventional audio equipment.

Tuya Smart Integration

Just scanning the QR code to bind your account, you’re able to control your home appliances via this control panel, scene is also supported. Additionally, you’re able to add this panel to your Tuya Smart App, manage and play music through smartphone remotely anywhere anytime. Furthermore, a doorbell button can be wired to the panel, when the button is pressed, the panel will make dingdong sound.

Easy to install

The control panel supports AC90~240V power input, adopting 86mm dimension size, it can be easily installed inside a gang box. No matter your house is under remodeling or not, you can easily make your home appliances become smart.

Product Highlight

• 4-inch TFT HD touch screen
• Wi-Fi wireless network connection
• Bluetooth function
• RS485 control
• MicroSD card slot for file storage
• Doorbell chime function
• Aux IN and Aux Out for traditional audio equipment
• 2-channel audio amplifier, power rate 40W
• Tuya smart integration

Product Specification

• Model: TUYA-I5
• Power Supply: AC 90 ~ 240V
• Display: 4-inch TFT HD screen
• OS: Tuya IoT OS
• RAM: 1GB DDR3
• ROM/Internal Storage: 8GB
• Amplifier: 2*20W
• Audio Impedance: 8Ohm
• Audio Input: 1CH Aux
• Audio Output: 1CH Aux
• Control Interface: RS485
• Wi-Fi: 802.11 b/g/n 2.4GHz
• Bluetooth; BLE 4.0
• External storage microSD
• Data transfer: microUSB
• Smart home: Tuya
• Color: white/black
• Panel dimension: 86*86*30mm
• Amplifier dimension: 86*86*57mm
